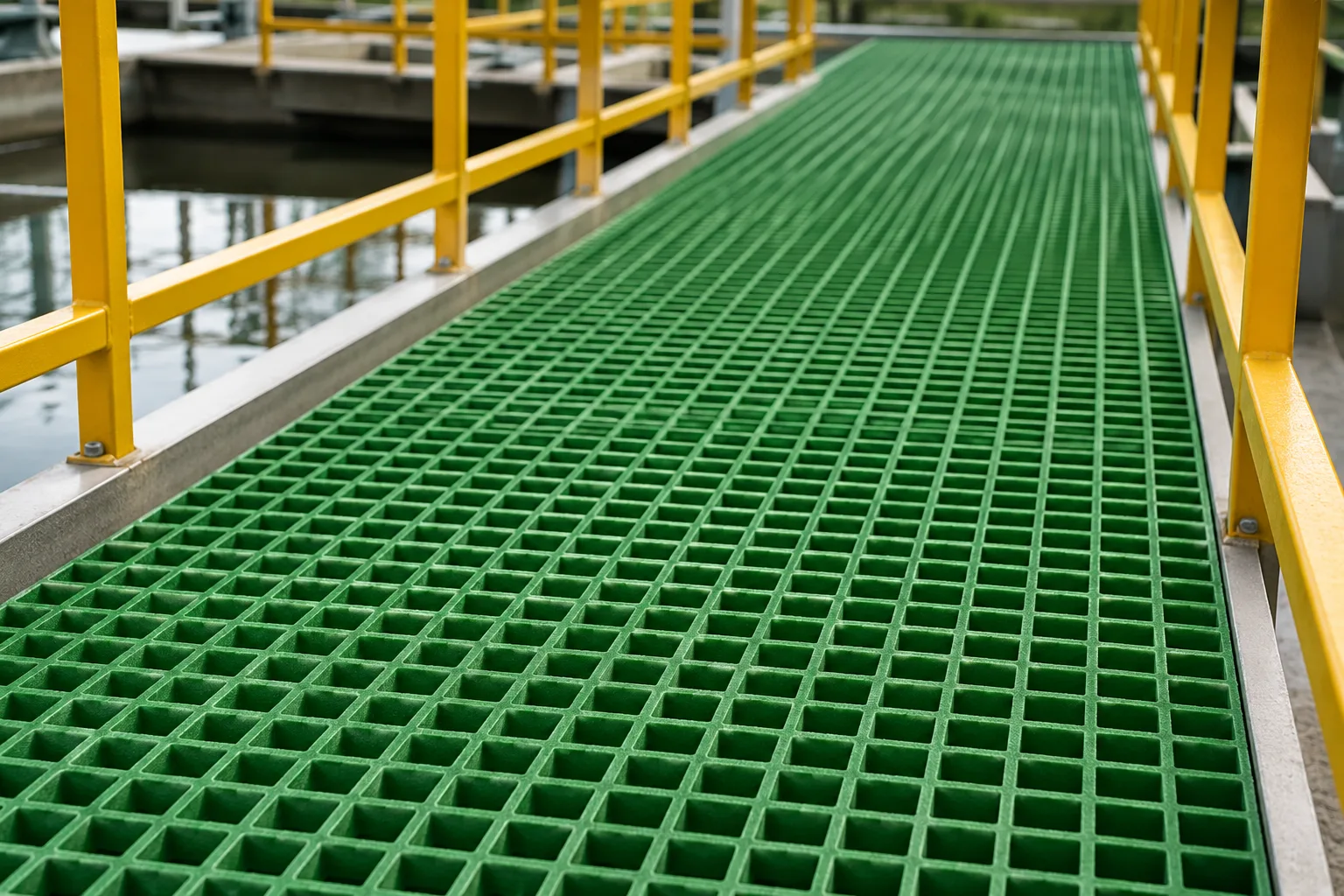

Why choose FRP over metal grating
Discover why FRP grating is a lightweight, corrosion-resistant, and low-maintenance alternative to metal grating for demanding industrial environments.
FRP grating is chosen over metal grating because it eliminates corrosion, cuts installed weight by roughly 75 percent, resists electrical shock, and typically outlasts steel in wet or chemical environments with almost no maintenance. At AMMS Global, we specify FRP grating for exactly these conditions. The trade-off is upfront material cost and lower absolute load capacity at extreme temperatures, so the decision depends on where and how the grating will be used.
FRP, or fiberglass reinforced plastic, combines continuous glass fibers with a thermoset resin matrix. The glass carries the tensile load; the resin protects the fibers and determines chemical resistance, fire performance, and temperature limits. Metal grating, whether steel, aluminium, or stainless, carries load well but brings a familiar set of problems in corrosive settings: rust, repainting, grounding requirements, and heavy handling.
Where the two materials actually differ
The comparison that matters is not FRP versus metal in general, but FRP versus the specific metal you would otherwise specify. A galvanised steel walkway over a chemical tank behaves very differently from an aluminium grating on an offshore platform.
Factor | FRP grating | Steel grating | Aluminium grating |
Weight | About 75% lighter than steel | Heavy, needs lifting equipment | Lighter than steel, heavier than FRP |
Corrosion in salt or acid | Unaffected by moisture and most chemicals | Rusts unless galvanised or painted | Oxidises, especially in marine air |
Electrical conductivity | Non-conductive, high dielectric | Conductive, must be grounded | Conductive |
Thermal feel | Low thermal conductivity, stays neutral | Conducts heat and cold | Conducts heat and cold |
Impact response | Distributes load, springs back | Can permanently deform | Can dent or bend |
High temperature limit | Typically below 150 degrees Celsius | Handles extreme heat | Moderate |
Fabrication | Cut with carbon or diamond blades, no welding | Welding or torches | Welding or cutting |
Corrosion resistance is the primary driver
The strongest reason to choose FRP over metal grating is environmental. FRP does not rust, rot, or degrade when immersed in water or exposed to salt spray, acids, and many industrial chemicals. Steel grating in the same conditions often needs galvanising, painting, or replacement within five to ten years. FRP grating in corrosive service commonly lasts twenty to twenty-five years with minimal intervention.
That longevity changes the cost conversation. While FRP carries a higher initial material cost than plain steel, the installed and lifecycle picture often reverses. A twenty-five-year analysis in chemical, marine, or wastewater settings typically shows FRP costing significantly less than steel once you remove scaffolding, surface preparation, repainting, and early replacement from the equation.
Weight and installation
FRP grating weighs roughly seventy-five percent less than steel, which changes how a project gets built. Panels can be carried by hand, cut on site with ordinary tools, and installed without welding or heavy lifting equipment. There is no hot work permit, no grinding, no repainting after a cut edge is exposed.
That also reduces the load on supporting structures. In retrofit work, a lighter grating can mean the existing steelwork does not need strengthening. For access platforms, walkways, and catwalks, the savings in handling time alone can offset much of the material premium.
Electrical and thermal safety
FRP is electrically non-conductive and has high dielectric capability. In substations, battery rooms, and any area with exposed electrical equipment, that removes the shock hazard that steel and aluminium introduce. Metal grating must be grounded; FRP does not.
Thermal behaviour is similar. FRP has low thermal conductivity, so it does not become painfully hot in direct sun or dangerously cold in refrigerated areas. It also does not create condensation the way metal can in humid conditions.
Slip resistance without add-ons
FRP grating typically includes a built-in anti-skid surface, often a gritted top layer, that remains effective when wet. Steel grating usually needs an additional coating or serration to achieve comparable slip resistance, and that coating wears or corrodes over time. For trench covers, stair treads, and platforms where water or oil is present, the moulded-in texture is a genuine safety advantage.
Types of FRP grating
The choice between FRP Molded Grating and FRP Pultruded Grating matters more than many first-time buyers realise. Molded grating uses continuous glass rovings laid in a heated mould, producing a bidirectional panel with square or rectangular openings. It handles multi-directional loads well and is the common choice for flooring and decking. Pultruded grating pulls glass through a resin bath and heated die to form I-bar or T-bar bearing bars, which are then assembled with cross rods. It is unidirectional and typically offers higher span capacity per unit weight, making it suitable for longer clear spans.
Resin selection is the other specification decision. Isophthalic polyester suits general chemical exposure, vinyl ester handles aggressive acids and bleach, phenolic resin offers low smoke and flame spread, and food-grade resins exist for processing areas.
When metal grating still makes sense
FRP is not a universal replacement. Steel grating remains the right choice for extreme heavy loads, traffic governed by AASHTO HS-20 or HS-25 standards, and environments that exceed roughly 150 degrees Celsius. Stainless Steel Grating is preferable where both corrosion resistance and high stiffness are required, and Aluminium Bar Grating works well in lightweight architectural applications with no severe chemical exposure. Bar Grating in steel or aluminium also remains cheaper upfront when the environment is dry and non-corrosive. For projects needing a lightweight, corrosion-resistant option, Aluminium Bar Grating offers a practical middle ground between steel and FRP.
A common mistake is treating FRP as a one-for-one steel replacement without checking span tables. FRP deflects more than steel at the same depth, so spans may need to be shortened or panel depth increased. Another mistake is specifying the wrong resin for the chemical environment, which can lead to premature softening or surface attack.
Getting the specification right
Start with the environment, not the material. Identify the chemicals present, the temperature range, the required span, and the load classification. Then compare FRP grating against the specific metal alternative using lifecycle cost, not purchase price. If the application involves moisture, salt, chemicals, or electrical exposure, FRP is usually the stronger long-term choice. If it involves extreme heat or very heavy rolling loads, metal retains the advantage.
For project-specific guidance on Fiberglass Grating selection, span tables, and resin compatibility, talk to our grating experts at AMMS Global.
