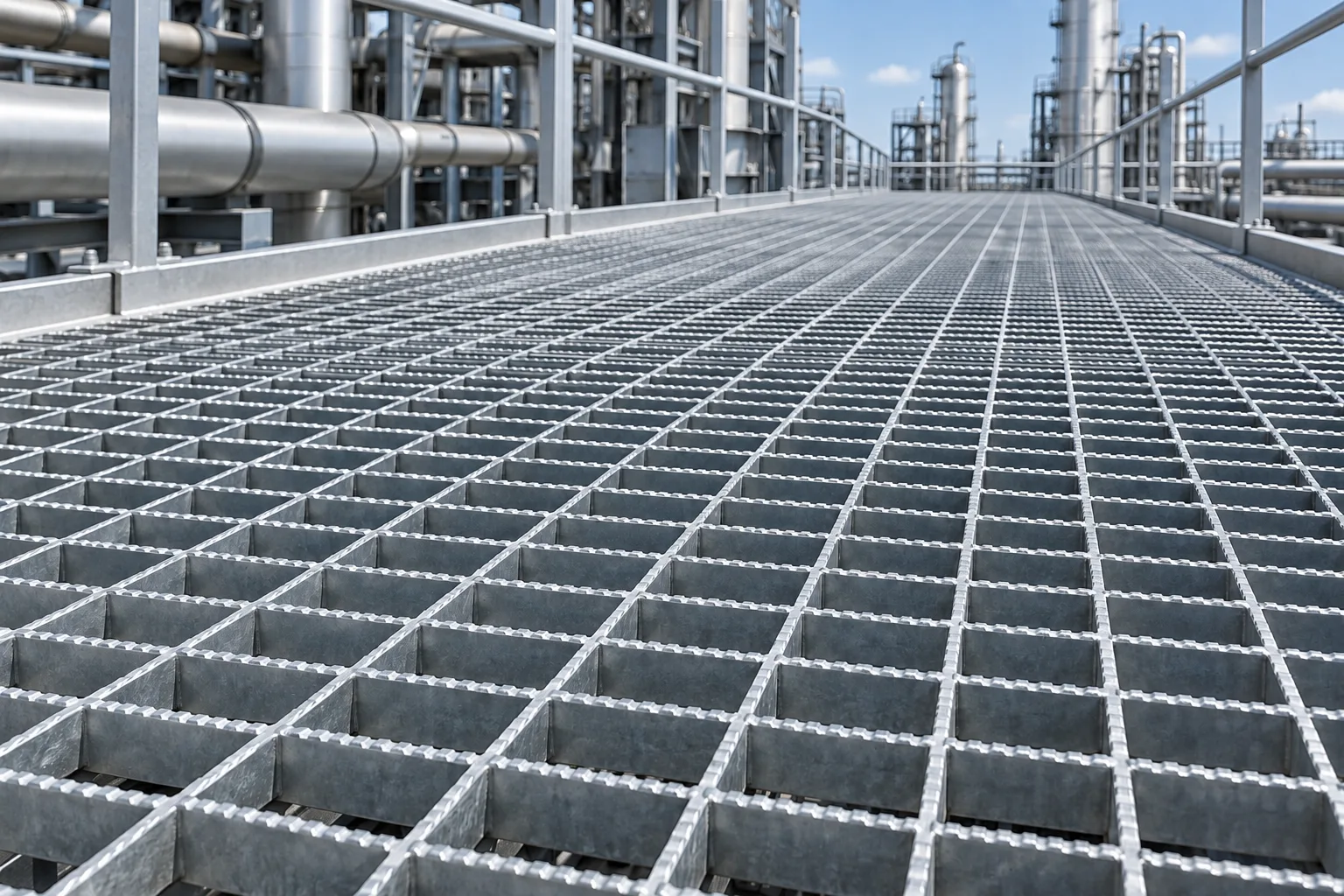

Floor grating is an open-grid flooring system designed to provide a strong walking or working surface while allowing water, air, light and small debris to pass through the openings. Unlike a solid floor plate, grating can help reduce the accumulation of water and other materials on the walking surface.
The right floor grating depends on several factors. These include the expected load, support span, operating environment, corrosion exposure, required open area and level of slip resistance.
For industrial facilities, floor grating can be fabricated into panels or sections for fixed flooring, maintenance areas, walkways and access platforms. AMMS Global provides grating products in different materials and configurations, including welded bar grating, press-locked grating, aluminium bar grating, stainless steel grating and fiberglass grating.
Floor Grating Material Options
The material should be selected according to the environment and the performance requirements of the installation.
Carbon Steel Floor Grating
Carbon steel floor grating is suited to many general industrial applications where strength and load performance are important. Welded bar grating is one of the configurations available from AMMS Global, including heavy-duty carbon steel grating with defined bearing bar sizes and spacing.
It can be considered for industrial floors, walkways, platforms and equipment access areas where the supporting structure and load requirements are properly specified.
Galvanized Floor Grating
Galvanized steel floor grating provides an additional layer of corrosion protection compared with untreated carbon steel. It can be considered for outdoor installations and areas exposed to moisture where the application requires greater resistance to environmental corrosion.
The appropriate galvanizing specification should be determined according to the exposure conditions and project requirements.
Stainless Steel Floor Grating
Stainless steel floor grating is useful in environments where corrosion resistance, cleanliness and durability are important. AMMS Global offers stainless steel bar grating in 304 stainless steel for hygiene-critical and corrosive environments.
This makes stainless steel a practical consideration for applications such as food processing, water treatment and other facilities where regular exposure to moisture or corrosive substances needs to be considered.
FRP Floor Grating
FRP floor grating, also called fiberglass floor grating, is manufactured using fiberglass reinforced plastic. It offers corrosion resistance and is particularly useful where metal grating may be exposed to chemicals, moisture or other aggressive conditions.
AMMS Global offers fiberglass grating including molded FRP grating. The company's product range positions fiberglass grating for demanding industrial environments and applications where chemical resistance is an important consideration.
Floor Grating Applications
The open construction of floor grating makes it useful across industrial and infrastructure environments. The exact product specification should always be matched to the expected load, support arrangement and site conditions.
Drainage Covers
Floor grating can be used where an open surface is needed above drainage channels or areas where water needs to move away from the working surface. The open area allows water to pass through while the load-bearing structure supports pedestrian or operational traffic according to its design.
Trench Covers
Grating panels can be used as covers over service trenches and access channels when the selected configuration provides the required load capacity and support span. The removable nature of suitably fabricated panels can also make inspection and maintenance access easier.
Warehouse Flooring
Floor grating can be used for elevated warehouse walkways, maintenance areas, access platforms and other sections where an open floor surface is preferred. The appropriate bearing bar size, spacing and support arrangement should be selected according to the anticipated loading.
Industrial Walkways

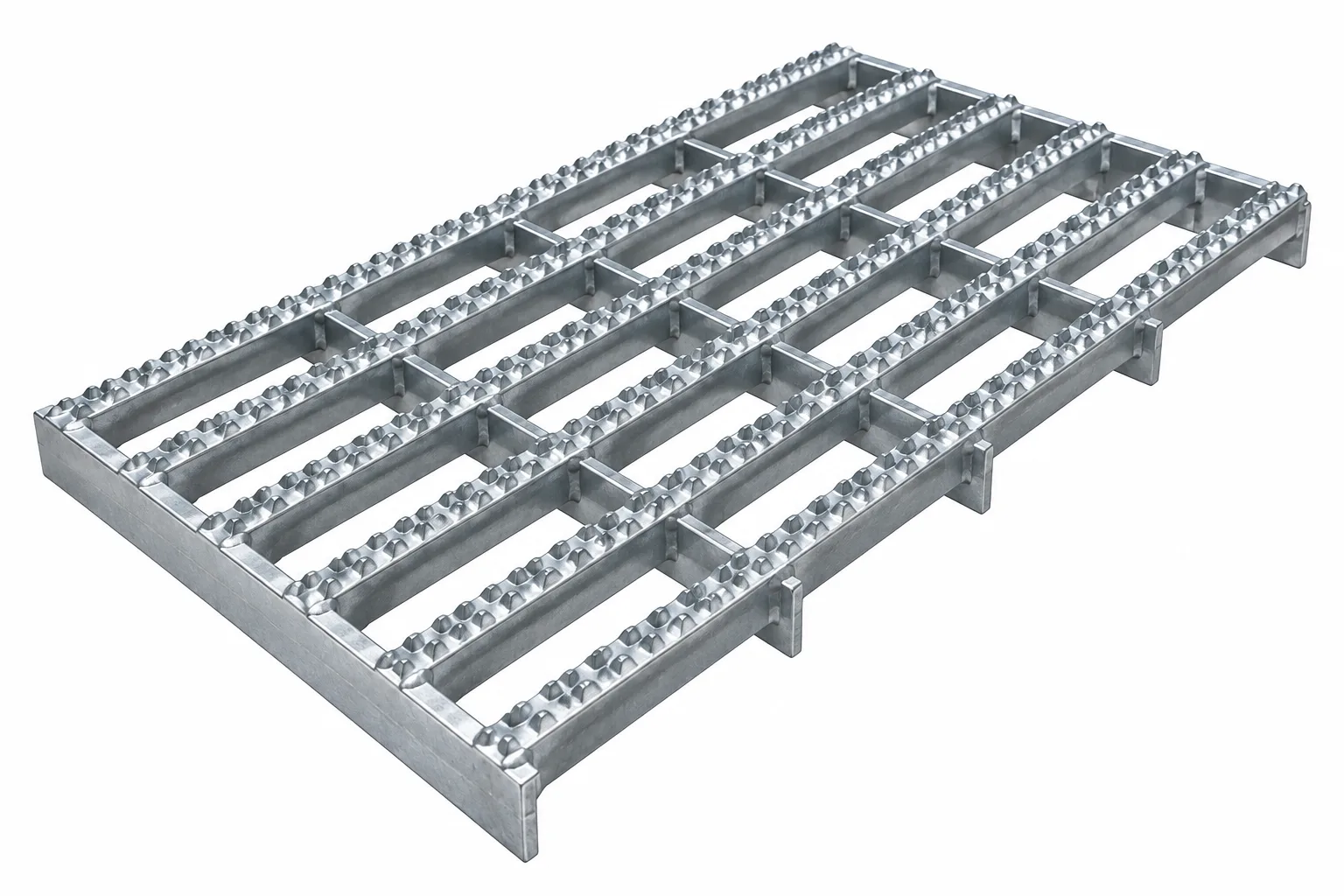

Open grating is widely suited to industrial walkways where drainage, ventilation and slip resistance are important considerations. Serrated surfaces can provide additional traction in areas where moisture, oil or debris may be present.
Platforms and Access Areas
Floor grating can also form part of elevated platforms and equipment access areas. AMMS Global's existing grating range includes products designed for industrial platforms, walkways and access applications.
Load Capacity and Open Area Basics
Two of the most important considerations when specifying floor grating are load capacity and open area.
Load capacity is influenced by the bearing bar size, bearing bar spacing, panel span, support arrangement, material and type of loading. A grating panel intended for regular pedestrian traffic will have different requirements from one supporting equipment, carts or heavier industrial loads.
Open area refers to the proportion of the grating surface occupied by openings rather than solid material. A higher open area can improve drainage, ventilation and visibility through the floor. A lower open area may provide a more substantial walking surface.
These characteristics need to be considered together. Increasing the opening size or changing the bearing bar arrangement can affect the overall performance of the panel. AMMS Global provides engineering support for product selection and load calculations as part of its project support process.
For a quotation, providing the required dimensions, support span, expected loading, material preference, surface finish and application environment helps the technical team identify an appropriate specification.
Floor Grating vs Platform Grating
Floor grating and platform grating can use similar products and may overlap in practical applications. The main difference is usually the application rather than a completely different type of grating.
Floor grating is a broader term for grating used as a walking or working surface. It can include flooring panels, drainage covers, trench covers, maintenance areas and warehouse access surfaces.

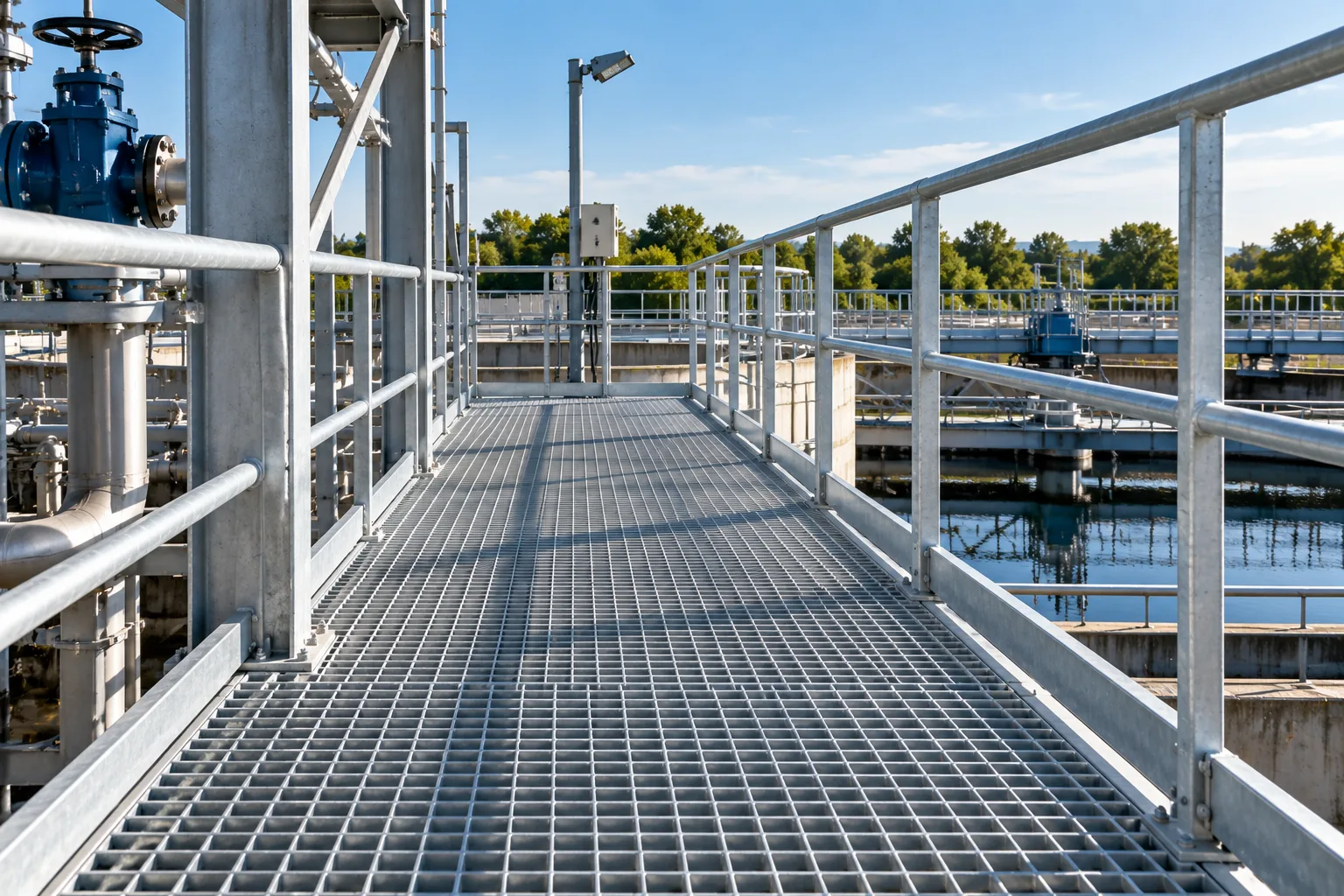

Platform grating generally refers to grating installed as the working surface of an elevated industrial platform or access structure. Load requirements, span and support arrangement can therefore be particularly important when specifying platform grating.
A single grating product may be suitable for both applications if its material, dimensions and load characteristics meet the project requirements.
Floor Grating Materials Compared
Material Type | Best For | Key Strength |
Carbon Steel | General industrial floors, walkways and platforms | High strength and load performance |
Galvanized Steel | Outdoor and moisture-exposed areas | Improved corrosion protection |
Stainless Steel | Hygiene-critical and corrosive environments | Corrosion resistance and durability |
FRP / Fiberglass | Chemical, wet and corrosive environments | Strong corrosion and chemical resistance |
The table provides a general comparison. Final material selection should be based on the actual operating environment, loading conditions and project specification.
Why Choose AMMS Global for Floor Grating?
AMMS Global combines industrial grating products with engineering and fabrication support. Its capabilities include cutting, welding, galvanizing and painting under one roof.
For projects where product selection depends on load or operating conditions, AMMS Global also provides engineering support including load calculations and product selection.
For related options, explore our Bar Grating range for welded, press-locked, aluminium and stainless steel configurations.
Need floor grating for an industrial floor, walkway, platform, drainage area or access application? Share your required dimensions, material, loading conditions, quantity and project environment with AMMS Global.
Frequently Asked Questions
What is floor grating used for?
Floor grating is used to create open walking and working surfaces in industrial and commercial environments. Common applications include walkways, platforms, warehouse flooring, maintenance areas, drainage covers and trench covers. The open design allows water, air and debris to pass through while the grating provides a load-bearing surface.
What is a metal grate floor called?
A metal grate floor is commonly called metal floor grating, industrial floor grating or bar grating depending on its construction. Bar grating uses load-bearing bars arranged with defined spacing to create an open flooring surface.
What are the different types of floor grating available?
Floor grating is available in different materials and construction types. Common material options include carbon steel, galvanized steel, stainless steel and FRP or fiberglass. Construction can include welded bar grating, press-locked grating and molded fiberglass grating. The appropriate option depends on the load, environment, corrosion exposure and required surface characteristics.
What is the purpose of grating?
The purpose of grating is to provide a strong open surface while allowing drainage, ventilation and light to pass through. In industrial applications, grating can be used for floors, walkways, platforms, stair treads and access areas. Surface patterns such as serrated grating can also provide additional slip resistance in demanding environments.
